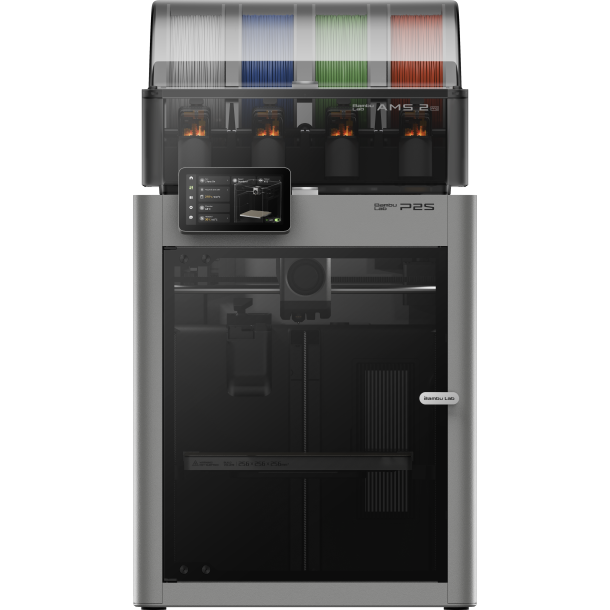

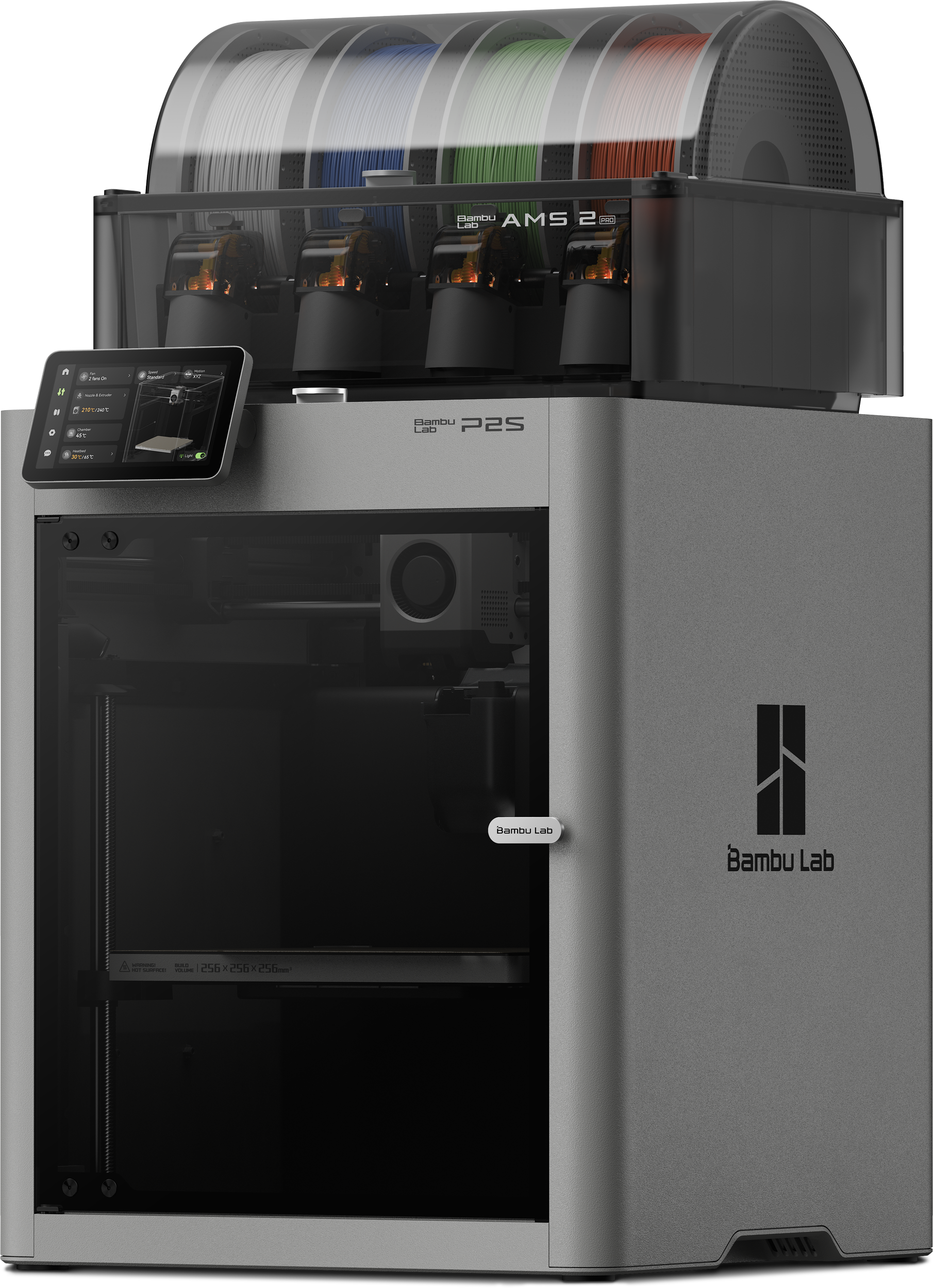

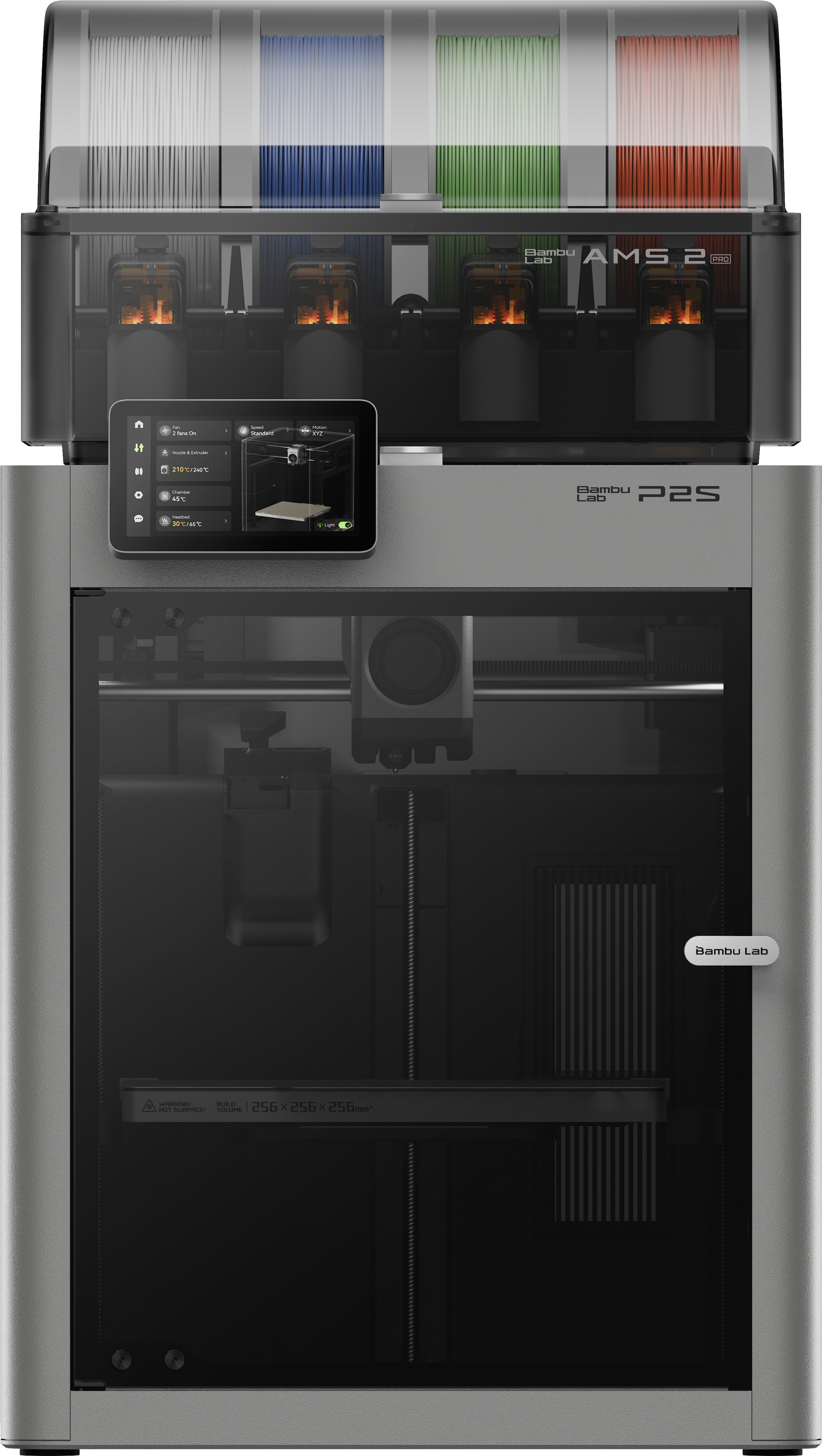

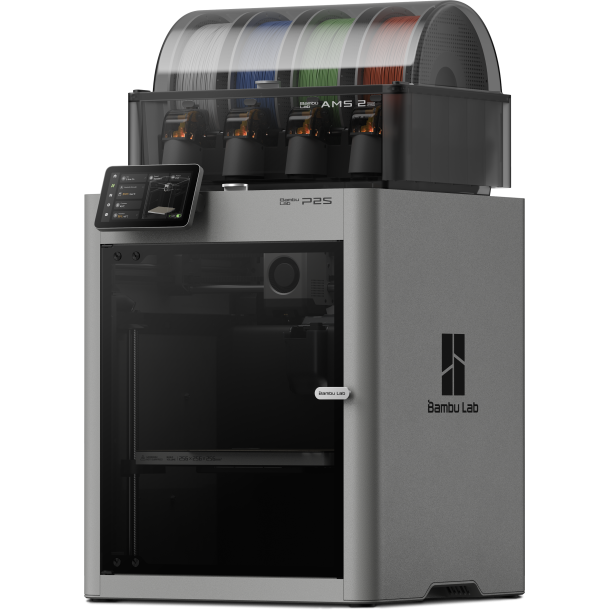

Bambu Lab P2S Combo 3D printer med AMS 2 Pro, 256 x 256 x 256 mm.

6.495,00 DKK

(inkl. moms)

Ny opdateret version af P1S

Out-of-the-box print på kun 15 min.

Inkl. 1 stk. AMS 2 Pro til print med 4 forskellifge farver eller filament typer samt tørring af filament

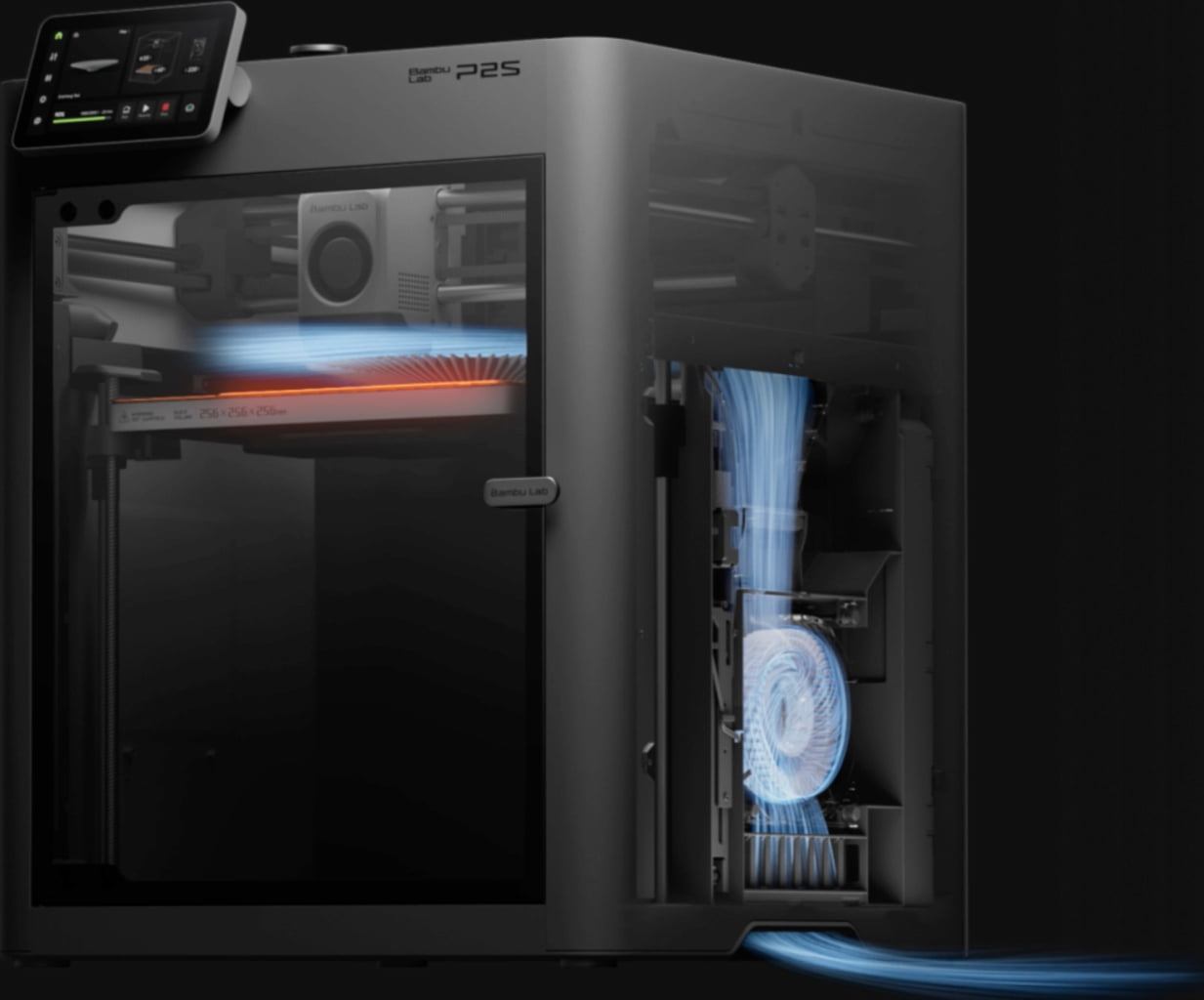

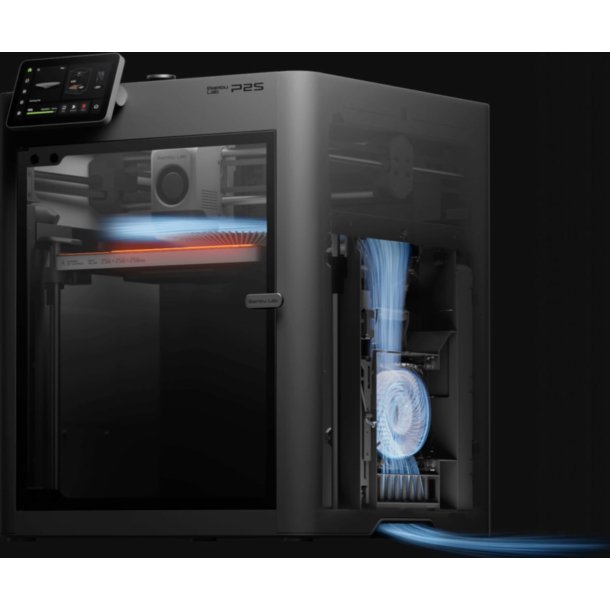

Indbygget i lukket kasse med HEPA filter og ekstra køling med afkølet luft

Byggestørrelse: 256 x 256 x 256 mm.

Printhastighed op til 600 mm/s og acceleration på op til 20,000 mm/s²

Automatisk bed level

Direct drive PMSM Servo extruder med all-metal hotend og quick-swap nozzle I hærdet stål.

Auto Flow Dynamics Calibration

Indbygget AI kamera til overvågning, timelapse mm.

Udskrivning via indbygget 8 GB EMMC /USB eller WIFI med gratis app til Apple og Android.

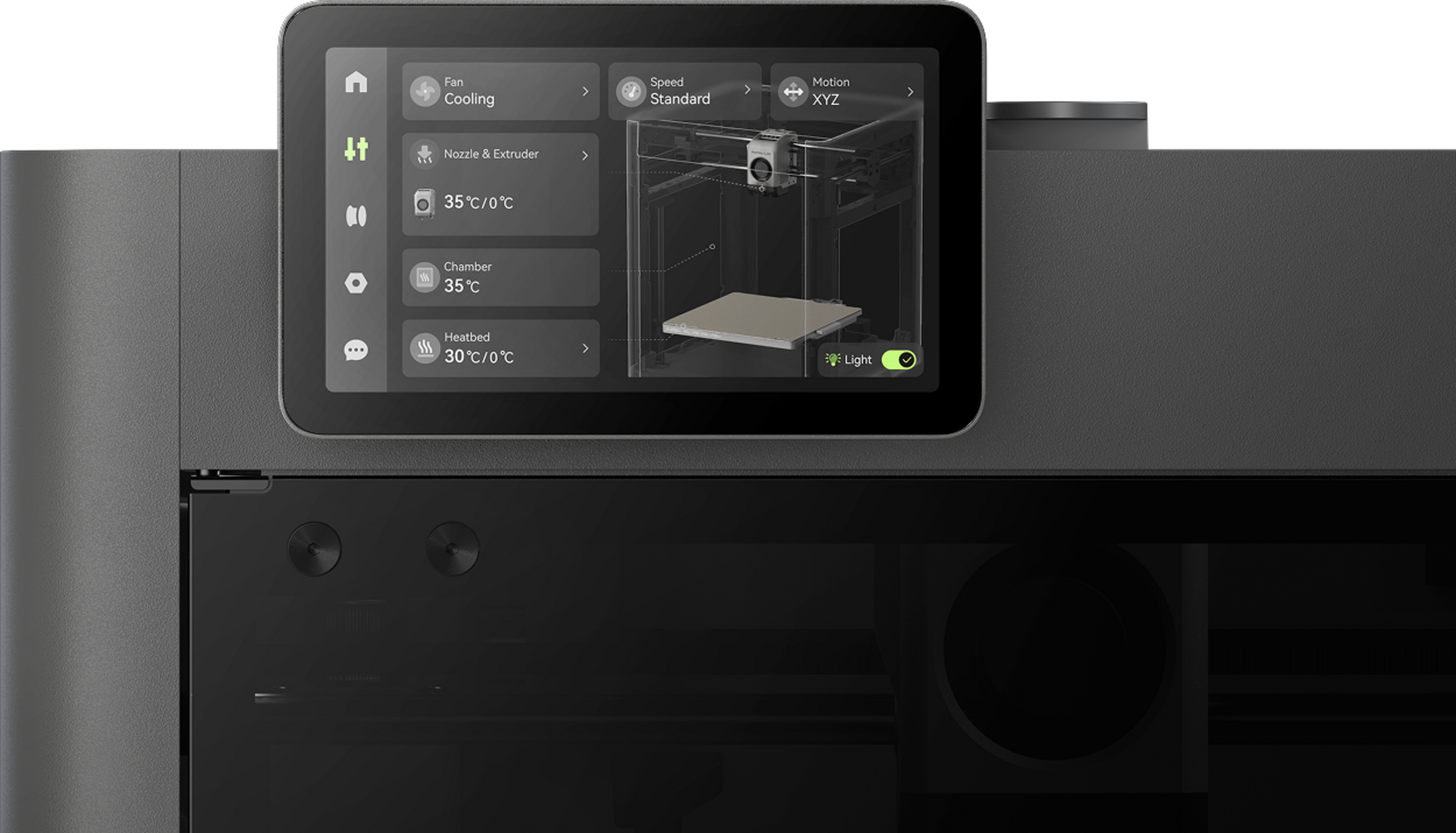

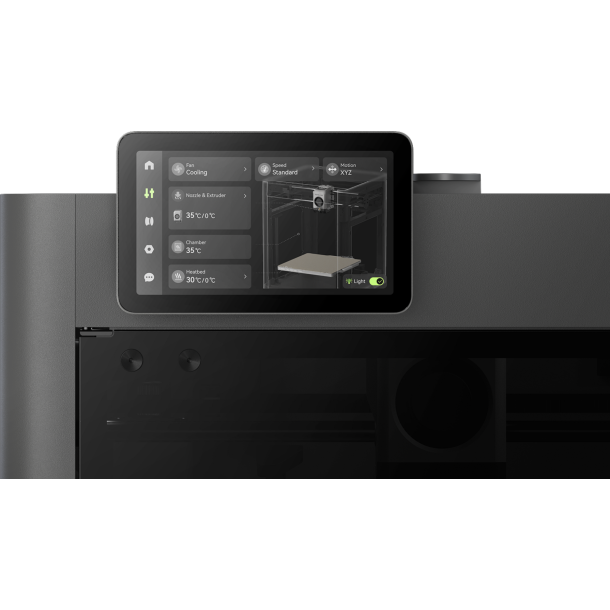

Indbygget 5" LCD touch skærm.

Printbed med magnetisk aftagelig printflade (Bambu Dual-Sided Textured PEI Plate)

Understøtter "resume-print" ved strømafbrydelse.

Kan udbygges med flere AMS moduler

Model/Varenr.: PF004-U+SA007-EU

Lagerstatus: Bestil nu, forventet på lager ultimo december

stk.

Beskrivelse

Technical Specifications

Printing Technology		Fused Deposition Modeling
Body	Build Volume (WDH)	256256256 mm³
	Chassis	Plastic and Steel
	Outer Frame	Plastic and Glass
Physical Dimensions	Physical Dimensions	392406478 mm³
Physical Dimensions	Net Weight	14.9 kg
Toolhead	Extruder Gear	Hardened Steel
	Nozzle	Hardened Steel
	Max Nozzle Temperature	300 °C
	Included Nozzle Diameter	0.4 mm
	Supported Nozzle Diameter	0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
	Filament Cutter	Built-in
	Filament Diameter	1.75 mm
	Extruder Motor	Bambu Lab High-precision Permanent Magnet Synchronous Motor
Heatbed	Build Plate Material	Flexible Steel Plate
	Included Build Plate Type	Textured PEI Plate
	Supported Build Plate Type	Textured PEI plate, Smooth PEI Plate, Cool Plate SuperTack
	Max Heatbed Temperature	110 ℃
Speed	Max Speed of Toolhead	600 mm/s
	Max Acceleration of Toolhead	20,000 mm/s²
	Max Flow for Hotend	40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 ℃ printing temperature)
Filtration	Activated Carbon Filter Type	Granulated Coconut Shell
	VOC Filtration	Supported
	Particulate Matter Filtration	Supported
Cooling	Part Cooling Fan	Closed Loop Control
	Cooling Fan for Hotend	Closed Loop Control
	Auxiliary Part Cooling Fan	Closed Loop Control
Filament Supported	PLA, PETG, ABS, ASA, TPU, Support for PLA, Support for PLA/PETG, Support for ABS, PET, PA, PC, PVA, PLA-CF, PETG-CF, ABS-GF, ASA-CF, PA6-CF, PA6-GF, PAHT-CF, PPA-CF, PET-CF
Sensor	Camera	Built-in; 1920*1080; 30 fps HD
	Door Sensor	Supported
	Filament Run Out Sensor	Supported
	Filament Tangle Sensor	Supported
	Filament Odometry	Supported with AMS
	Power Loss Recovery	Supported
Electrical Requirements	Voltage	100-120 VAC / 200-240 VAC, 50/60 Hz
	Max Power*	1200 W@220 V / 1000 W@110 V
	PLA Steady-State Power	200 W@220 V / 200 W@110 V（PLA printing）
Working Temperature		10 °C–30 °C
Electronics	Touchscreen	5-inch 854*480 Touchscreen
	Storage	Built-in 8 GB EMMC and USB Port
	Control Interface	Touchscreen, mobile App, PC App
	Motion Controller	Dual-core Cortex-M4 and Single-core Cortex-M7
	Application Processor	Quad-core 1.5 GHz ARM A7
	Neural Processing Unit	2 TOPS
Software	Slicer	Bambu Studio Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
Software	Supported Operating System	MacOS, Windows, Linux
Network Control	Ethernet	Not Available
	Wireless Network	Dual-Band Wi-Fi
	Network Kill Switch	Not Available
	Removable Network Module	Not Available
	802.1X Network Access Control	Not Available
Wi-Fi	Operating Frequency	2412 - 2472 MHz, 5150 - 5850 MHz (FCC/CE) 2400 - 2483.5 MHz, 5150 - 5850 MHz (SRRC)
	Wi-Fi Transmitter Power (EIRP)	2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: <30 dBm (CE); <24 dBm (FCC) 5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
	Wi-Fi Protocol	IEEE 802.11 a/b/g/n

Toolhead

Hotend	All Metal
Extruder Gear	Hardened Steel
Nozzle	Hardened Steel
Max Nozzle Temperature	350 °C
Included Nozzle Diameter	0.4 mm
Supported Nozzle Diameter	0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Diameter	1.75 mm
Extruder Motor	Bambu Lab High-precision Permanent Magnet Synchronous Motor

Heatbed

Supported Build Plate Type	Textured PEI Plate, Smooth PEI Plate
Max Heatbed Temperature	120 ℃

Speed

Max Speed of Toolhead	1000 mm/s
Max Acceleration of Toolhead	20,000 mm/s²
Max Flow for Hotend (Standard Flow Hotend)	40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Max Flow for Hotend (Optional High Flow Hotend)	65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)

Chamber Temperature Control

Active Chamber Heating	Supported
Max Temperature	65 °C

Air Purification

Pre-filter Grade	G3
HEPA Filter Grade	H12
Activated Carbon Filter Type	Granulated Coconut Shell

Cooling

Part Cooling Fan	Closed Loop Control
Auxiliary Part Cooling Fan	Closed Loop Control
Chamber Heat Circulation Fan	Closed Loop Control
Cooling Fan for Hotend	Closed Loop Control
Main Control Board Fan	Closed Loop Control
Chamber Exhaust Fan	Closed Loop Control

Supported Filament Type

PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA-CF/GF, PPS, PPS-CF/GF

Supported

Sensor

Live View Camera	Built-in; 1920*1080
Nozzle Camera	Built-in; 1920*1080
BirdsEye Camera	Built-in; 3264*2448 （Equipped with Laser Edition)
Toolhead Camera	Built-in; 1920*1080
Door Sensor	Supported
Filament Run Out Sensor	Supported
Filament Tangle Sensor	Supported
Filament Odometry	Supported with AMS
Power Loss Recovery	Supported

Electrical Requirements

Voltage	200-240 VAC, 50/60 Hz
Max Power*	2200 W@220 V / 1320 W@110 V

Working Temperature

10 °C–30 °C

Electronics

Touchscreen	5-inch 720*1280 Touchscreen
Storage	Built-in 8 GB EMMC and USB Port
Control Interface	Touchscreen, mobile App, PC App
Neural Processing Unit	2 TOPS

Software

Slicer & Software	Bambu Studio, Bambu Suite, Bambu Handy Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
Supported Operating System	MacOS, Windows

Wi-Fi

Operating Frequency	2412-2472 MHz, 5150-5850 MHz (FCC/CE) 2400-2483.5 MHz, 5150-5850 MHz (SRRC)
Wi-Fi Transmitter Power (EIRP)	2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: <30 dBm (CE); <24 dBm (FCC) 5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
Wi-Fi Protocol	IEEE 802.11 a/b/g/n
