Artisan er Snapmakers seneste generation af 3-i-1 3D-printere. Større, stærkere og mere tilgængelig end nogensinde før, det bliver din næste stationære kraftcenter.
Generelle features:
3-i-1 software til Windows og Mac medfølger.
3D print med printhoveder op til 300 grader
10W lasermodul til skæring of indgravering.
200W CNC modul til fræsning.
7" Smart Touch display.
Indbygget kamera
Glas og PEI printbed plade medfølger
Tilslutning via WIFI, USB kabel eller USB flash
Resume ved strømafbrydelse
Automatisk bedlevel.
Indbygget filamentsensor.
Magnetisk aftagelig flexibel printbed.
Quick-swap moduler.

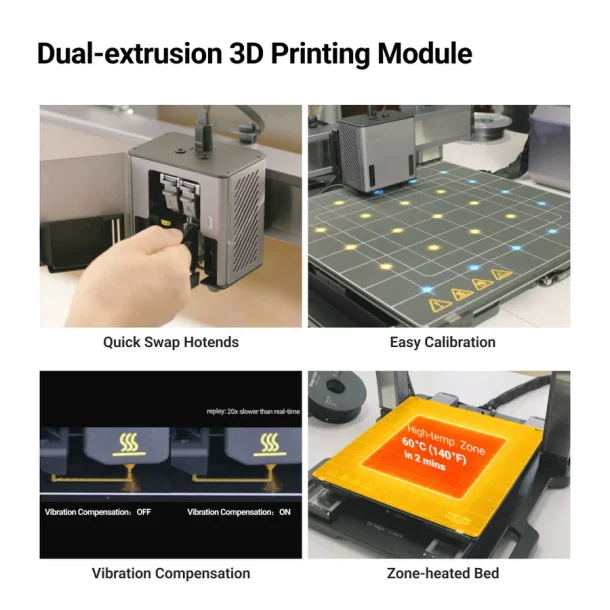

3D Printning:
Work Area (W × D × H)
Artisan Dual Extrusion Module: 350mm × 400mm × 400mm (Dual Nozzle)
Artisan Dual Extrusion Module: 375mm × 400mm × 400mm (Left Nozzle)
Artisan Dual Extrusion Module: 400mm × 400mm × 400mm (Right Nozzle)
2.0 Dual Extrusion Module: 350mm × 370mm × 400mm (Dual Nozzle)
2.0 Dual Extrusion Module: 375mm × 370mm × 400mm (Left Nozzle)
2.0 Dual Extrusion Module: 400mm × 370mm × 400mm (Right Nozzle)
Nozzle Diameter (Standard)
0.4 mm
Nozzle Diameter (Optional)
0.2 mm, 0.6 mm, 0.8 mm
Nozzle Material (Standard)
Brass
Nozzle Material (Optional)
Hardened steel
Max. Nozzle Temperature
300°C
Max. Recommended Printing Speed
180 mm/s
Build Plate
Double-sided PEI-coated Glass
High-temperature Zone (Inner Zone)
260 mm × 260 mm
Max. Heated Bed Temperature (Inner Zone)
110°C
Max. Heated Bed Temperature (Outer Zone)
80°C
Supported Materials[2]
PLA, ABS, ASA, PETG, TPU (Hardness ≥ 90 Shore A), Breakaway Support for PLA, PVA, HIPS, Nylon, Carbon Fiber Reinforced Nylon, Glass Fiber Reinforced Nylon
Supported Formats
stl, obj
Laser:
Work Area (W × D)
400 mm × 400 mm
Power
10W
Laser Type
450 nm – 460 nm Semi-conductor
Max. Engraving Speed
200 mm/s
Max. Cutting Depth (Paulownia)
10W: 5mm Basswood Plywood
Operating Temperature
0°C–35°C
Laser Spot Dimension
10W: 0.05mm × 0.2mm
Supported Materials for Engraving (10W Laser)
Painted Metal, SPTE (Steel Plate), Stainless Steel, Anodized Aluminum, Acrylic (Black Opaque), Pinewood, Plywood, Beechwood, Walnut, Bamboo, MDF (Medium-Density Fiberboard), Dark glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Corrugated Fiberboard, Cardboard
Supported Materials for Cutting (10W Laser)
Basswood, Paulownia, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)
Supported Formats
stl, svg, png, jpg, jpeg, bmp, dxf, snaplzr

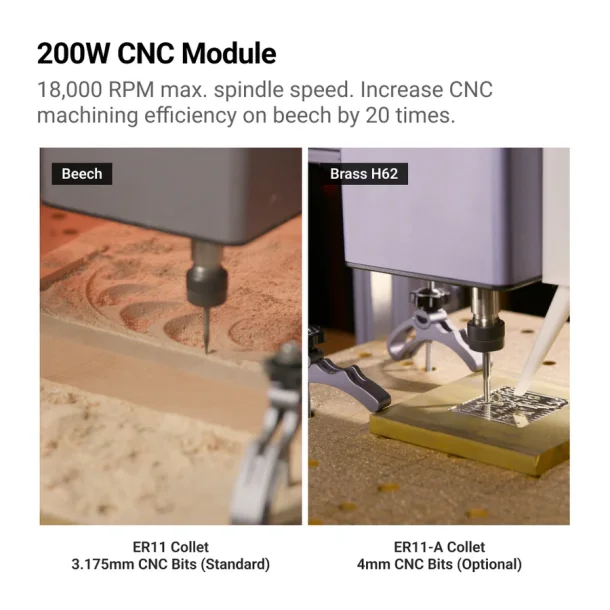

CNC:
Work Area (W × D)
400 mm × 400 mm
Power
200W
Max. Spindle Speed
18,000 RPM
Max. Work Speed[3]
50 mm/s (Beech); 33 mm/s (Acrylic)
Maximum Stepdown
2 mm (Beech); 1 mm (Acrylic)
Shank Diameter
0.5 mm–6.35 mm
Supported Materials (Ideal)
Hardwood (Beech, Walnut), Softwood, HDF, MDF, Plywood, Jade, Carbon Fiber, Acrylic, Epoxy Tooling Board, PCB
Supported Materials (Capable)
Aluminum (1000-6000 Series), Brass, Red Copper
Supported Formats
stl, svg, png, jpg, jpeg, bmp, dxf

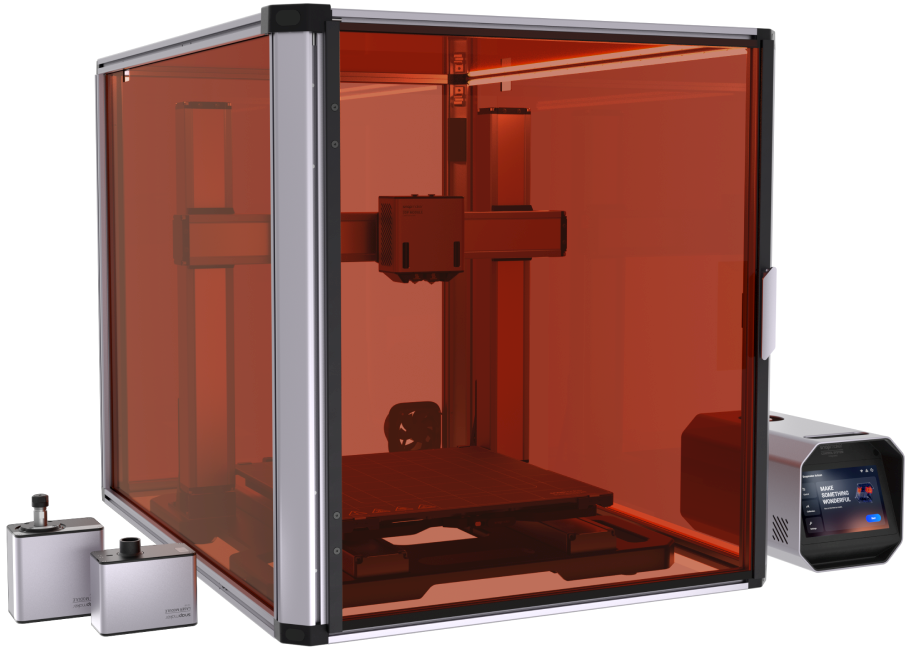

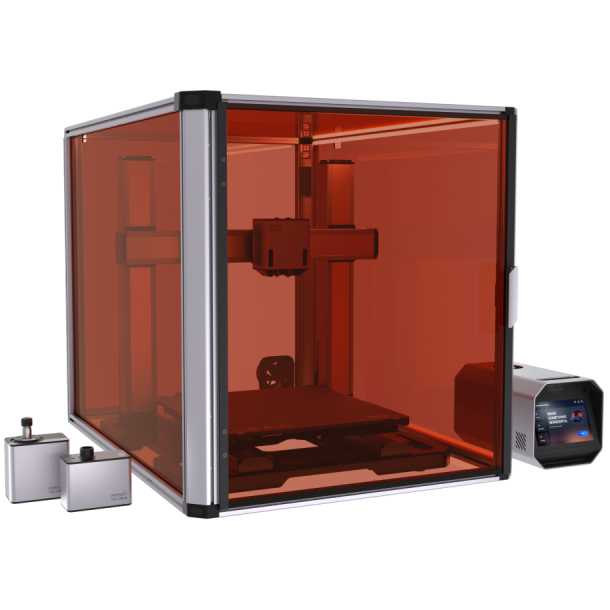

Indbygningskasse:
Dimensions (Machine)
580 mm × 620 mm × 634 mm
Snapmaker Artisan Modular 3D Printer
Dimensions (Machine & Enclosure)
665 mm × 943 mm × 705 mm
