Technology
Dual-camera Infrared Structured Light
Single-frame Accuracy, up to
0.08 mm
Single-frame Precision, up to
0.04 mm
Scanning Speed，up to
18 fps
Fused Point Distance, up to
0.05 mm
Single Capture Area at Nearest Distance
61 x 68 mm at 150 mm
Single Capture Area at Furthest Distance
244 x 180 mm at 400 mm
Scanning Type
Handheld and Desktop
Working Distance
150 ~ 400 mm
Minimum Scan Volume
20 x 20 x 20 mm
Maxmium Scan Volume
2 x 2 x 2 m
Auxiliary Lighting
Infrared Fill Lights, White Flash LEDs
Angular Field of View, H x W
40 x 25°
CPU
2 core, 1.6GHz
Position Sensors
9-axis IMU
Scanner Weight
190 g
Dimensions（L x W x H）
153 x 45 x 29 mm
Tracking Methods
Feature , Marker, Global Marker
Buttons
3
Connector Type
USB Type-C
Power Requirements
DC 5V, 1A
Wi-Fi
6
Bluetooth
4.1
Special Object Scanning
Use scanning spray for transparent, dark, or highly reflective objects
Scanning Environment
Indoors and Outdoors
Ready to Print 3D Models
Yes
Output File Formats
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
User Recalibration
Yes

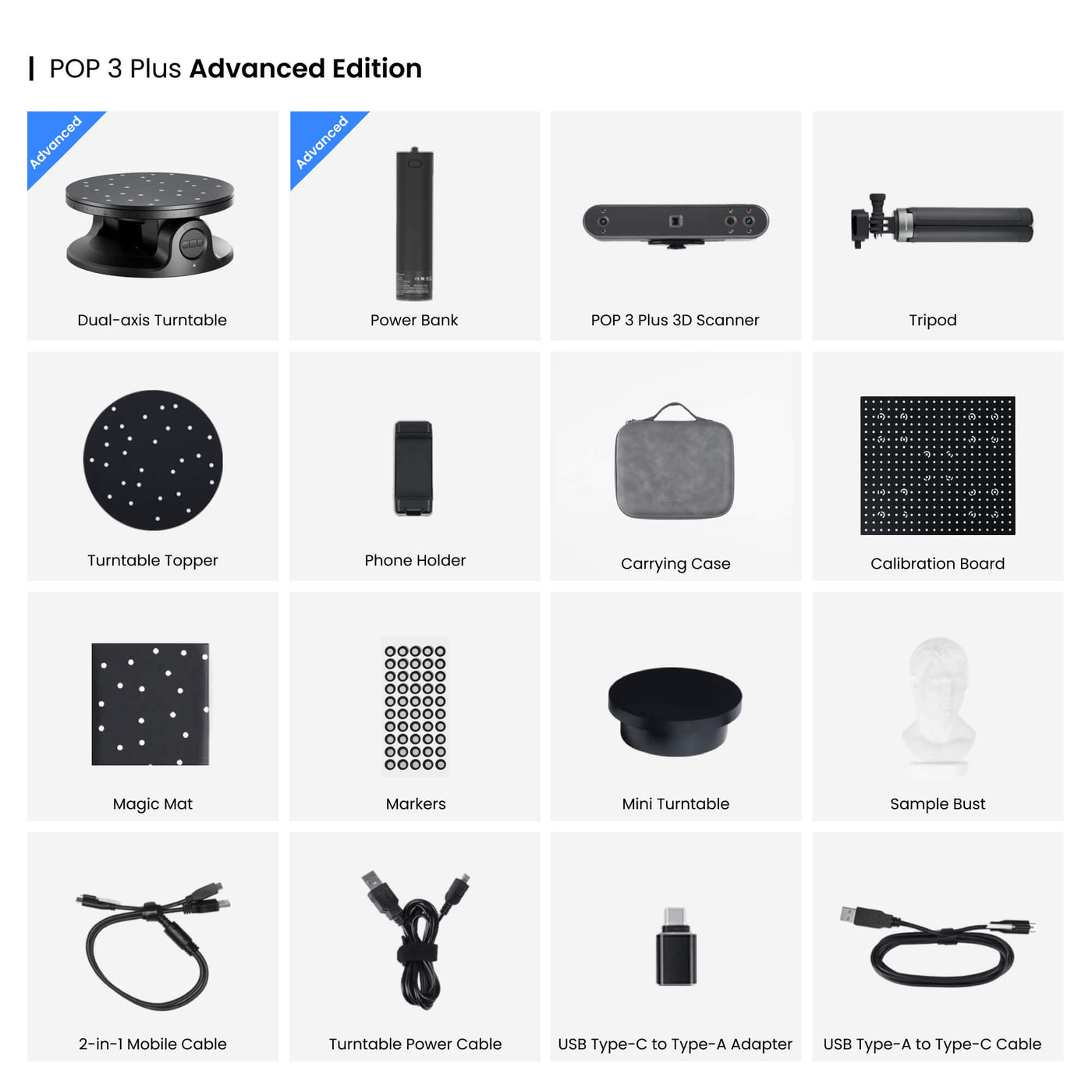

Supported Accessories
Large Turntable, Dual-axis Turntable, Handheld Stabilizer, Power Bank, Mobile Kit
Compatible Systems
Windows 10/11(64-bit), Android, iOS, macOS
Light Type
Class 1 Infrared Light (Eye Safe)
Minimum PC Requirements
macOS
CPU: M1 Pro or better;
RAM ≥ 8GB
Windows
CPU: Intel i7 12th or better;
RAM ≥ 16GB
Recommended PC Requirements
macOS
CPU: M3 or better;
RAM ≥ 8GB
Windows
CPU: Intel i9 11th or better;
RAM ≥ 32GB
