Specifications

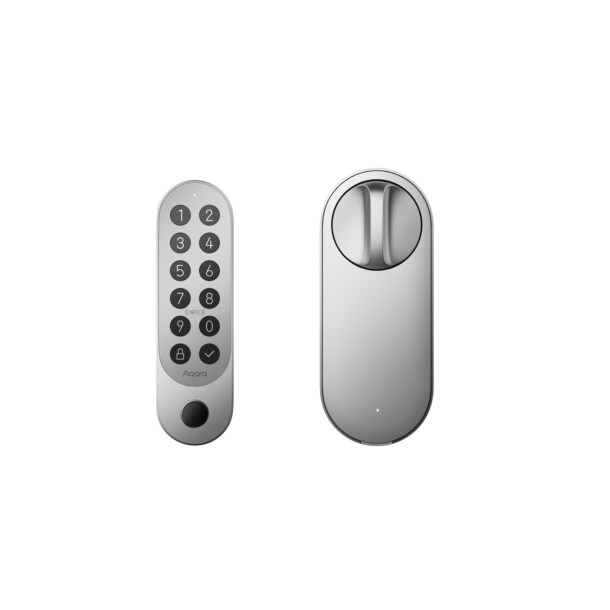

Model
EL-D02D/EL-D02E
Keypad Dimensions:
42.7 × 33 × 146 mm (1.7 × 1.3 × 5.7 in.)
Door Lock Dimensions:
62.3 × 60.6 × 152.5 mm (2.4 × 2.4 × 6 in.)
Wireless Protocols:
Thread, Bluetooth 5.1, NFC
Powering Modes:
Door Lock: Aqara Rechargeable Li-ion Battery 7.4V or 4 LR6 1.5V Batteries Keypad: 4 LR3 AAA 1.5V Batteries or 12V-24V AC 0.5A 50/60Hz or 12V-24V DC 0.5A wired input
Operating Temperature
-15 °C ~ 66 °C (5 °F ~ 150.8 °F)
Operating Humidity:
0 ~ 93% RH, no condensation
IP Rating (Keypad):
IPX5

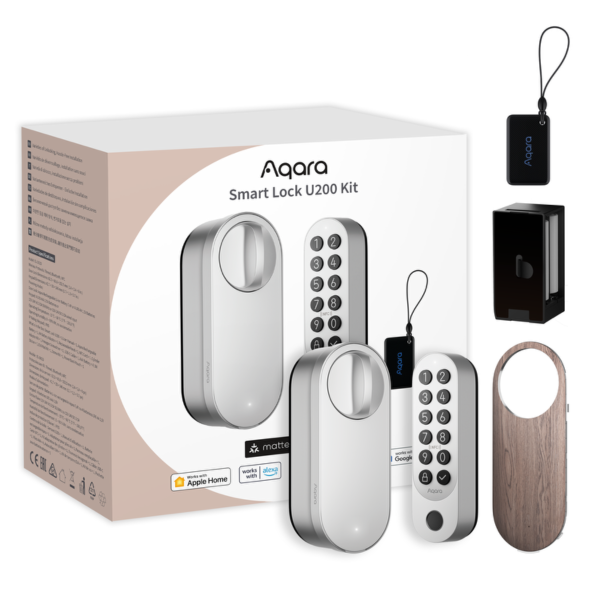

What is in the Box:
EL-D02D: Smart Lock U200 × 1,User Manual × 1, Aqara Rechargeable Battery × 1, AA Battery Adaptor × 1, Replaceable Panel × 1, NFC Card × 1 ,Cylinder Adaptor Kit × 1, Hexagon Screwdriver × 1, USB-C Cable × 1, AAA Battery × 4, 3M Sticker × 1, EVA Pad Kit × 1, Screw Kit × 1, Power Bank Pouch × 1 EL-D02E: Smart Lock U200 × 1, User Manual × 1, Aqara Rechargeable Battery × 1, Cylinder Adaptor Kit × 1, Hexagon Screwdriver × 1, USB-C Cable × 1, AAA Battery × 4, 3M Sticker × 1, EVA Pad Kit × 1, Screw Kit × 1, Power Bank Pouch × 1
